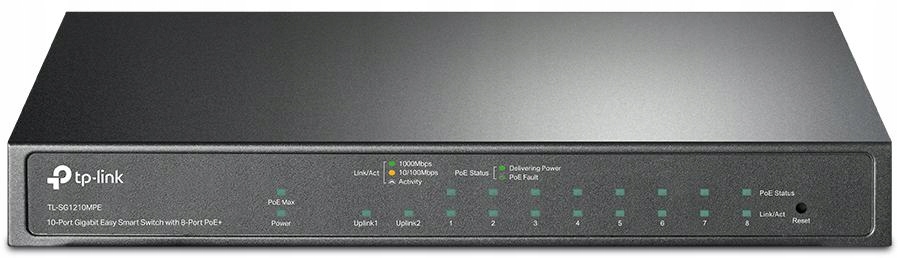

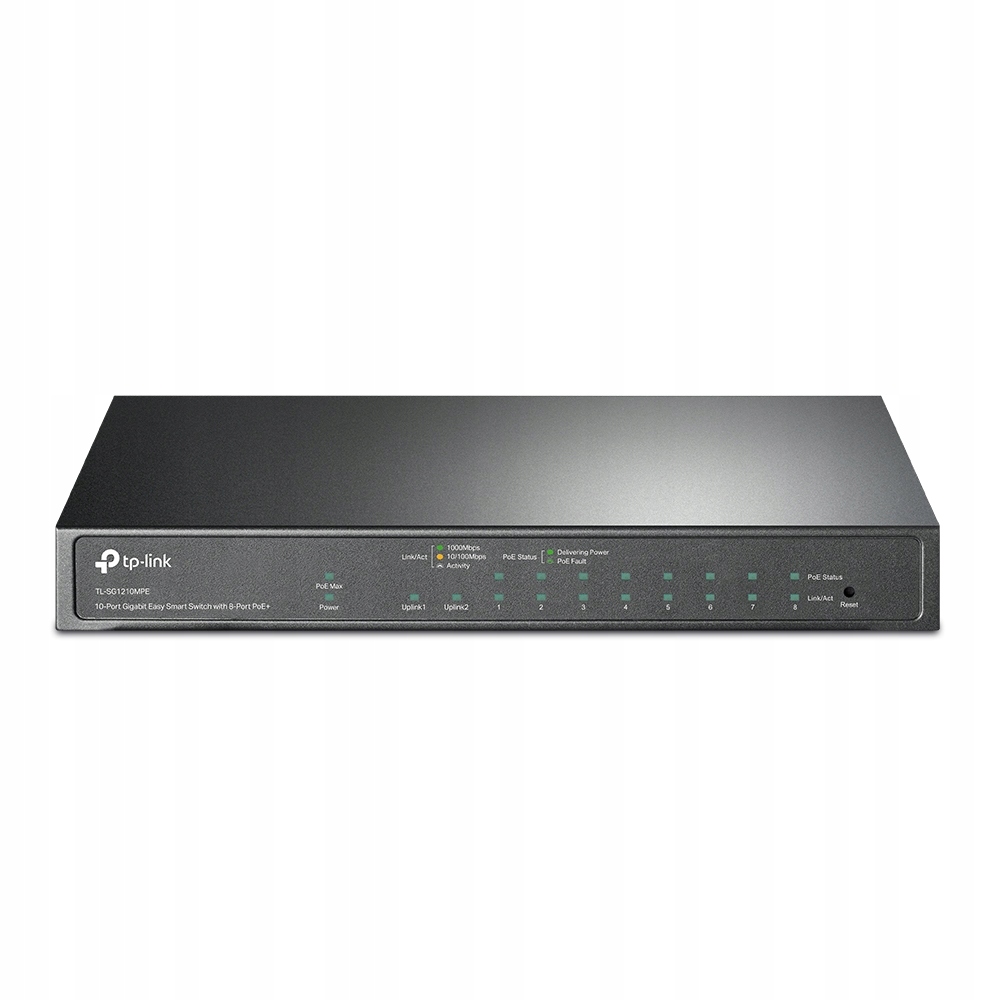

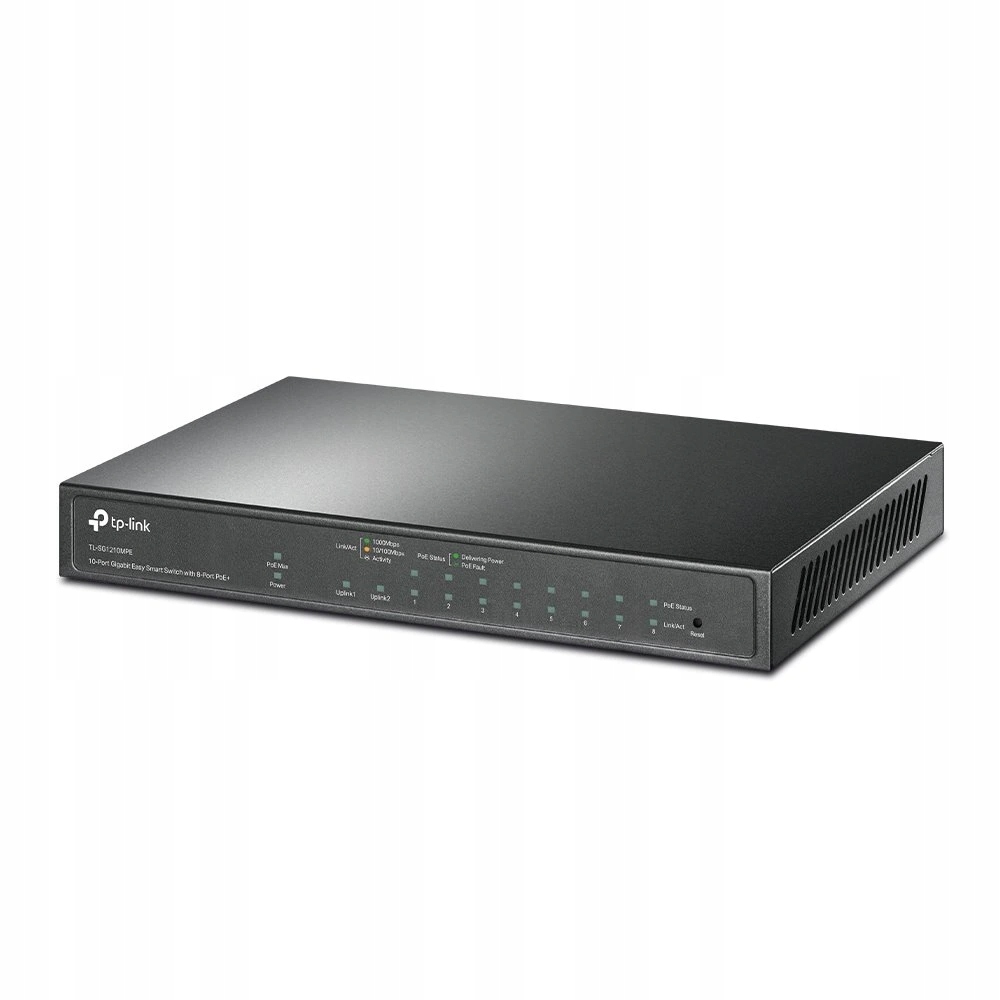

10-Port Gigabit Easy Smart Switch with 8-Port PoE+ Port: 8× Gigabit PoE+…

Popis produktu

TL-SG1210MPE 10portový gigabitový Easy Smart switch s 8 portami PoE+ 9 gigabitových portov RJ45 a 1 kombinovaný gigabitový port SFP/RJ45 Switch je vybavený ôsmimi portami 802.3af/at PoE+ s výkonom napájania až 30 W na každý port a prenáša dáta aj napájanie cez jediný kábel Podporuje napájanie PoE s celkovým výkonom až 123 W zo všetkých portov PoE* Poskytuje monitorovanie siete, riadenie prevádzky podľa priorít, funkcie VLAN a automatické obnovenie PoE Jednoduché nastavenie siete a pripojenie plug-and-play Webové používateľské rozhranie a konfiguračný nástroj Easy Smart zjednodušujú nastavenie Konštrukcia bez ventilátora znižuje spotrebu energie a eliminuje prevádzkovú hlučnosť HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z Interface 9× 10/100/1000 Mbps RJ45 Ports 1× 1000 Mbps Combo SFP/RJ45 Port AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter (Output: 53.5 VDC/2.43 A) PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 8 PoE Power Budget: 123 W Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) Max Power Consumption 7.66 W (220V / 50Hz with no PD connected) 141.54 W (220V / 50Hz with 123 W PD connected) Max Heat Dissipation 26.12 BTU/h (220V / 50Hz with no PD connected) 482.65 BTU/h (220V / 50Hz with 123 W PD connected) PERFORMANCE Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps MAC Address Table 4 K Jumbo Frame 16 KB SOFTWARE FEATURES Quality of Service Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN PoE Extend Mode** PoE Auto Recovery Management Web-based GUI Easy Smart Configuration Utility Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents TL-SG1210MPE Power Adapter Installation Guide Rubber Feet System Requirements Microsoft Windows for running Utility Environment Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing
