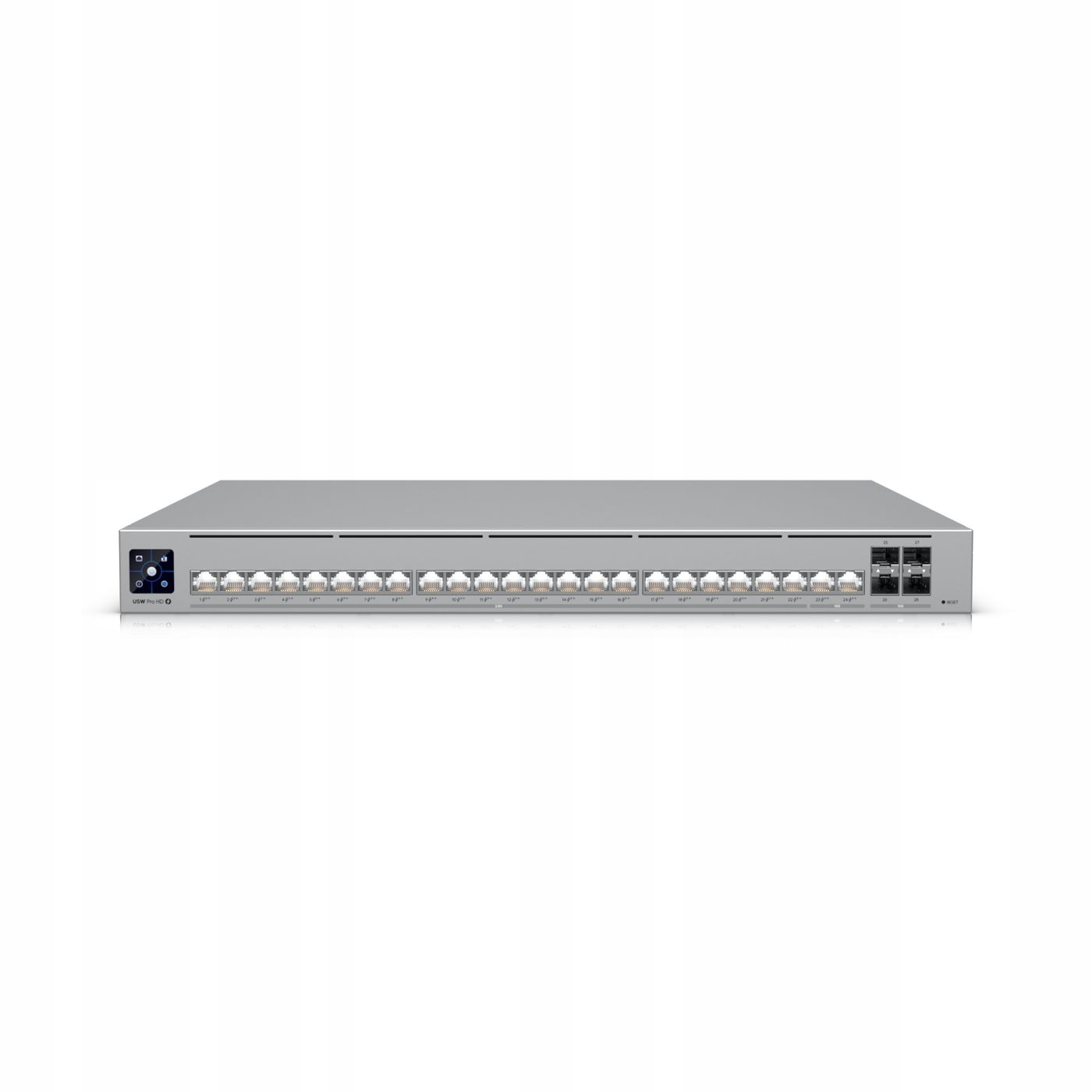

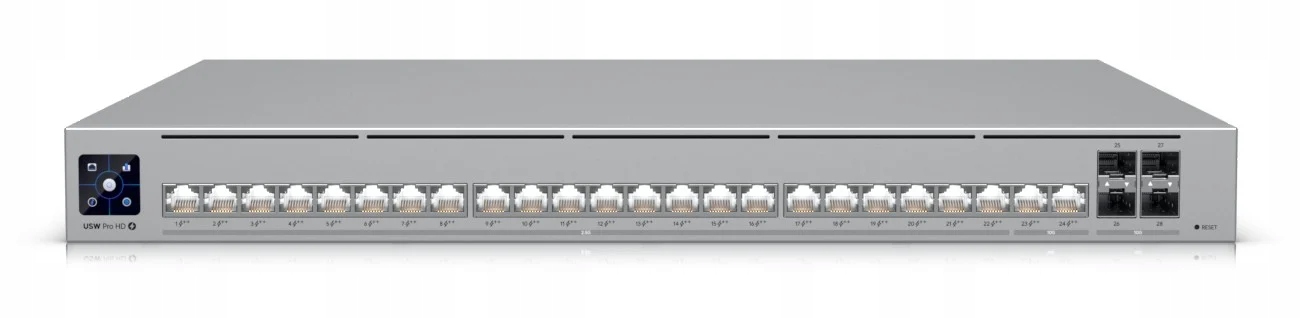

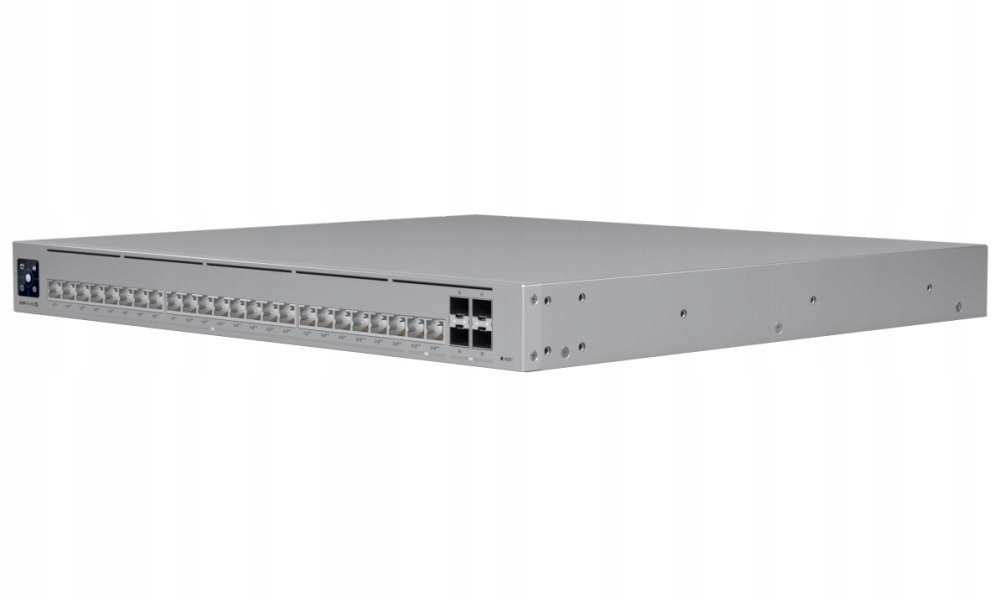

Ubiquiti UniFi switch Gen2 USW-PRO-HD-24-POE Layer3 22x 2,5Gbps 2x…

Popis produktu

řada profesionálních switchů Layer 3 Etherlighting™ s porty (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, a (4) 10G SFP+ ports. Etherlighting™ ports - technologie která se osvětlením označuje umístění portů, rychlost/link a nativní VLAN/síť (22) 2.5 GbE, (2) 10 GbE PoE++ ports (4) 10G SFP+ ports DC power backup ready** 600W total PoE availability Technical Specifications Overview Dimensions 442 x 400 x 44 mm Port Layout 2.5 GbE RJ45 22 (All PoE++) (2.5G/1G/100M/10M) 10 GbE RJ45 2 (All PoE++) (10G/5G/2.5G/1G/100M) 10G SFP+ 4 (10G/1G) Max. PoE Output Up to PoE++ Total PoE Availability 600W Redundancy DC Power Backup Layer 3 Yes Form Factor Rack mount (1U) Etherlighting™ Yes Performance Switching Capacity 230 Gbps Total Non-Blocking Throughput 115 Gbps Forwarding Rate 171 Mpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 12,000 IPv4 Routes 12,000 Packet Buffer Size 2 MB Layer 3 Features DHCP Server (Local Networks) Yes DHCP Relay Yes Inter-VLAN Routing (Local Networks) Yes Static Routing (Local Networks) Yes Layer 2 Features LACP Port Aggregation Yes STP & RSTP Yes QoS (DSCP) Yes Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Yes Advanced IGMP Configuration (Querier, Fast Leave, Router Port) Yes IGMP Snooping Yes 802.1X Control Yes MAC-Based ACLs & Device Isolation Yes DHCP Snooping & Guarding Yes Egress Rate Limit Yes Flow Control Yes Storm Control Yes Multicast & Broadcast Rate Limiting Yes MAC Address Blocking Yes IP-Based ACLs & Network Isolation Yes MAC-Based Port Restriction Yes Port Isolation Yes Port Mirroring Yes Jumbo Frames Yes LLDP-MED Yes Voice VLAN Yes Loop Protection Yes Hardware PoE Ports PoE++ 24 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 64W Max. Power Consumption 60W (Excluding PoE Output) 660W (Including PoE Output) Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Input Method AC input Power Supply AC/DC, internal, 660W Supported Voltage Range 100—240V AC Management Ethernet AR Weight Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 600 - 1,200 mm LCM Display 1.3" touchscreen Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet Yes SFP+ Yes NDAA Compliant Yes Certifications CE, FCC, IC Software Application Requirements UniFi Network Version 9.0.114 and later
