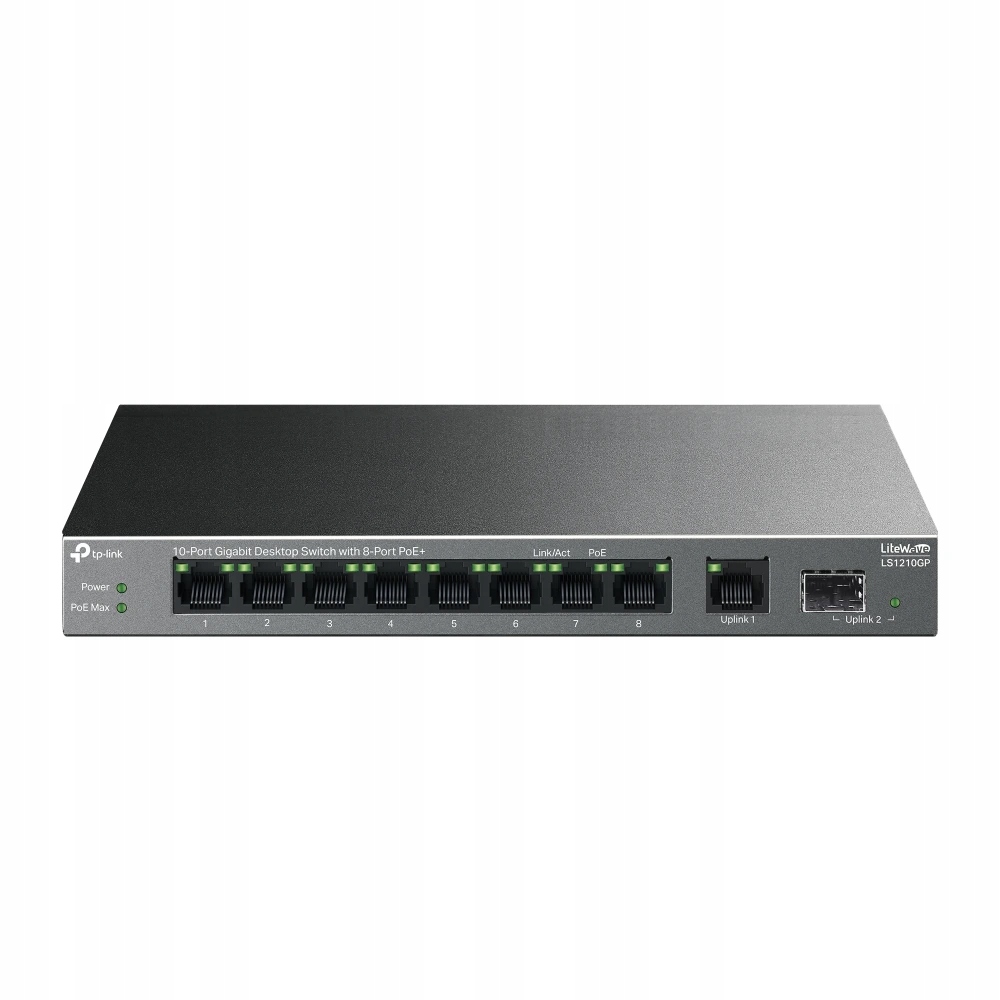

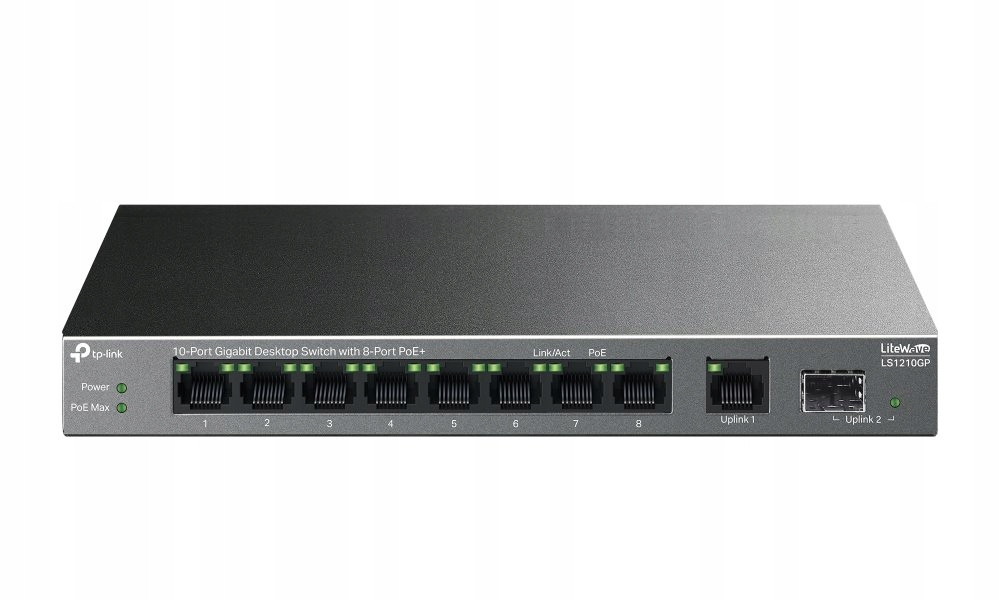

Switch Tp-link LS1210GP

Popis produktu

Plug and Play: Jednoducho zapojíte a môžete začať ihneď používať, bez nutnosti konfigurácie. Tichá prevádzka: Konštrukcia bez ventilátora znižuje spotrebu energie a zaisťuje tichú prevádzku, čo je ideálne pre domácnosti alebo firmy uprednostňujúce tiché riešenia. HARDWARE FEATURES Interface • 9× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 supports PoE+ output) • 1× Gigabit SFP Port Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m) Fan Quantity Fanless Installation • Desktop • Wall Mounting Physical Security Lock Yes Power Supply External Power Adapter(Output: 53.5VDC / 1.31A) PoE+ Ports(RJ45) • Standard: 802.3at/802.3afpliant • PoE Ports: Ports 1–8, up to 30 W PoE output per port • PoE Power Budget: 61W Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm) Max Power Consumption • 7.3 W (220/50Hz. no PD connected) • 76.96 W (220/50Hz. with 61 W PD connected) Max Heat Dissipation • 24.82 BTU/h (no PD connected) • 261.66 BTU/h (with 61 W PD connected) PERFORMANCE Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps MAC Address Table 4K Jumbo Frame 16 KB SOFTWARE FEATURES Advanced Features • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) •patible With IEEE 802.3af/atpliant PDs • IEEE802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Green Technology Transmission Method Store-And-Forward OTHERS Certification CE, FCC, RoHS Package Contents • LS1210GP • Power Adapter • Installation Guide Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
