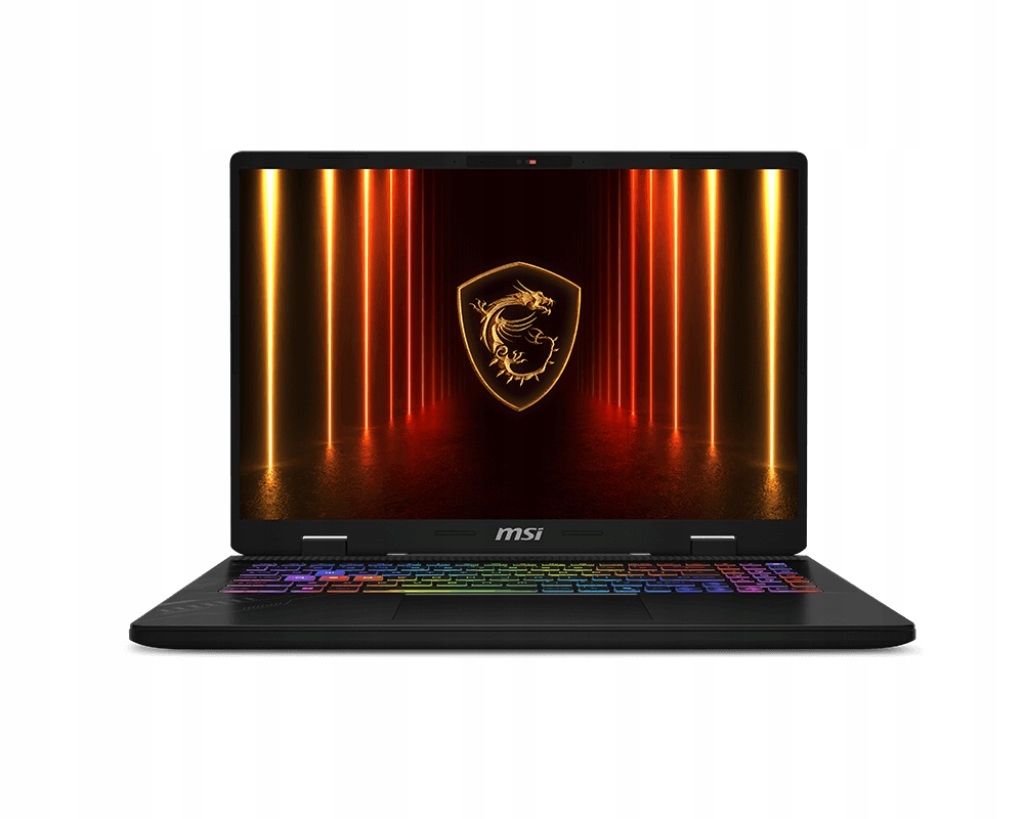

Msi Crosshair 16 Hx Ai D2XWFKG-063CZ/Core Ultra 9 275HX/32GB/1TB/RTX 5060

Popis produktu

MSI Crosshair 16 HX AI D2XWFKG-063CZ/Core Ultra 9 275HX/32GB/1TB/RTX 5060
MSI
MSI Crosshair 16 HX AI D2XWFKG-063CZ/Core Ultra 9 275HX/32GB/1TB/RTX 5060, 8GB/16" QHD+240Hz/Win11 Home
Part No 9S7-15P421-063
SKU Number
Website Name Crosshair 16 HX AI D2XWFKG
Platform INTEL
Series Name Gaming
Segment Name Crosshair
Segment Name2 Crosshair16HXAID
Segment Name3 Crosshair16HXAI D2XWFKG
Model 15P4
MKT Name Crosshair 16 HX AI D2XWFKG
Entity MKT Name
MKT Spec Crosshair 16 HX AI D2XWFKG-063CZ
Chassis Color
Color ID2(GB)/Cosmos_Gray-Black-Black-Black
Color_Website Cosmos Gray
Chassis Material
A Side Metal
B Side Plastic
C Side Plastic (PCR)
D Side Plastic (PCR)
Display
Screen Size 16
Resolution IPS-Level QHD+
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 240Hz
Response Time G to G 3ms
Color Range 100% DCI-P3
Screen Size_Website 16"
Pixel_Website QHD+(2560x1600)
Frame Rate_Website 240Hz Refresh Rate
Color Range_Website 100% DCI-P3(Typical)
Display Type_Website IPS-Level
Peak Brightness (HDR Value) N/A
Touch Feature_Website NA
Typical Brightness 500 nits,IPS-level/BENT TYPE/500nit/FOR MS-15FK
Typical Brightness Remark
CPU
CPU Type 24 CORE
CPU Core Name ARROW LAKE
CPU Number Core Ultra 9 275HX
CPU Basic Clock 2.7GHz
CPU Cores 24
NPU TOPS
CPU Core Name_Website N/A
CPU Number_Website Intel® Core™ Ultra 9 processor 275HX with Intel® AI Boost (NPU)
CPU Number_Website For GC Intel® Core™ Ultra 9 processor 275HX with Intel® AI Boost (NPU)
CPU Specification_Website 24 cores (8 P-cores + 16 E-cores), 24 thread, 40MB cache, Max Turbo Frequency 5.4 GHz
Chipset
Chipsets HM870
Chipset SoC_Website Intel® HM870
Discrete Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX 5060
GPU1 Number RTX 5060
GPU1 MKT Name_Website GeForce RTX 5060
GPU1 Boost Clock_Website Boost Clock 115W Maximum Graphics Power with Dynamic Boost. *May vary by scenario
GPU1 Remark_Website N/A
CPU and GPU Combined Power
Combined Power_Website Max. 170W CPU-GPU Power with MSI OverBoost Technology.
OverBoost Ultra Remark_Website N/A
Scenario Remark_Website *May vary by scenario, *Full Power CPU & GPU
Cooling
Thermal Cooler Boost 5
Fan 2
Fan Technology N/A
Pipe 5
Vapor Chamber NA
Video Memory
GPU1 VRAM Size 8GB
GPU1 VRAM Type GDDR7
Integrated Graphics
GPU1 Graphics_Website Intel® Graphics
Memory
Memory Size 16GB*2
Memory Module DDR5-5600
Memory(Slot) Max Speed Up to DDR5-6400
Memory Form N/A
Memory Remark_Website *The actual frequency will vary by memory combination and CPU capability.
Memory Slot and Max Capacity
Memory Max Speed Up to DDR5-6400
Memory Slot 2 Slots
Memory Max Capacity_Website Max 96GB
Storage
SSD Form Factor M.2-2280 M-KEY
SSD Size 1TB*1
SSD Interface NVMe SSD PCIe Gen4
SSD 2 Size N/A
SSD 2 Interface N/A
HDD size N/A
2.5" HDD_Website N/A
SSD Remark ”Please consult service center for upgrading SSD.”
Storage Slot
SSD (NVMe PCIe Gen)_Website 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible
HDD_Website NA
Max Storage Capacity 8TB
LAN
LAN_Website Gigabit Ethernet
LAN REALTEK/RTL8111H-CG
RJ45 1x
Wi-Fi/ Bluetooth
WLAN/BT_Website Intel® Wi-Fi 6E AX211, Bluetooth v5.3
WLAN Version Wi-Fi 6E+BT
WLAN/BT INTEL/AX211.NGWG.NV
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging N/A
Type-C (USB3.2 Gen2 / DisplayPort™) N/A
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.0) 1x
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.1) N/A
Thunderbolt™ 4 (DisplayPort™) N/A
Thunderbolt™ 5 (DisplayPort™/ Power Delivery 3.1) N/A
Thunderbolt™ (DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB4® / DisplayPort™/ Power Delivery 3.0/ Thunderbolt™ 4 compatible) N/A
Type-C (USB4® / DisplayPort™/ Power Delivery 3.1/ Thunderbolt™ 4 compatible) N/A
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) NA
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery
