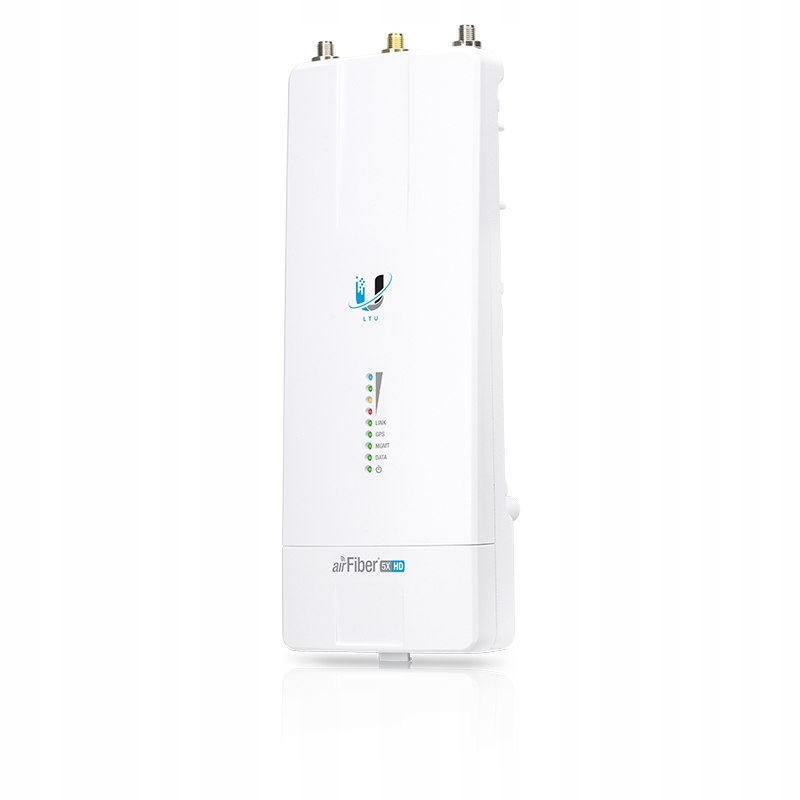

Ubiquiti AirFiber AF-5XHD 5GHz Hd Point-to-Point 1000+Mbps AF-5XHD

Popis produktu

technologie datového přenosu 1Gbps+ za pomoci technologie PtP pro Internet providery nebo jinak náročná datová propojení. 5 GHz, 100+ km link range 1000+ Mbps throughput Dedicated spectral analysis radio Integrated GPS sync 2+ Mpps processing Technical Specifications Mechanical Dimensions 224 x 82 x 48 mm (8.8 x 3.2 x 1.9") Weight 0.4 kg (0.8 lb) Mounting airFiber X mount (Rocket mount compatible) GPS Pole Mount (Included) Weatherproofing IP67* *After installation of IP67 upgrade kit (included). Hardware Networking interface (2) GbE RJ45 ports Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-) Power supply 24V, 1A gigabit PoE adapter (Included) Supported voltage range 18—54V DC Max. power consumption 12W GPS antenna External, magnetic base Ambient operating temperature -40 to 55° C (-40 to 131° F) Certifications CE, FCC, IC Software Modes PtP Master/Slave Max. throughput 1+ Gbps Max. range* 100+ km *Throughput and range values may vary depending on the environmental conditions. Encryption AES-256 RF Max. TX power* 29 dBm *Depends on regional regulations. Frequency accuracy ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization Channel bandwidth 10/20/30/40/50/60/80/100 MHz selectable Programmable Uplink and Downlink duty cycles Operating Frequency (MHz) Worldwide 4800 - 6200 MHz* *Depends on regional regulations. US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz
