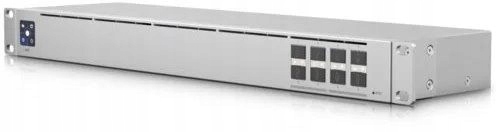

Ubiquiti UniFi switch Gen2 USW-Aggregation 8x10G Sfp+ rack Usw…

Popis produktu

Technical Specifications Mechanical Dimensions 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7") Weight Without mounting brackets: 2.6 kg (5.8 lb) With mounting brackets: 2.7 kg (6 lb) Enclosure material SGCC steel Hardware Management interface Ethernet In-Band Networking interface (8) 10G SFP+ ports Total non-blocking throughput 80 Gbps Switching capacity 160 Gbps Forwarding rate 119.04 Mpps Power method Universal input, 100—240V AC, 50/60 Hz Power supply AC/DC, internal, 36W Supported voltage range 100—240V AC Max. power consumption 30W ESD/EMP protection Air: ± 16kV, contact: ± 12kV Max. number of supported SFP+ modules UACC-OM-MM-10G: 8 UACC-OM-SM-10G: 8 UACC-CM-RJ45-10G: 4 UACC-CM-RJ45-MG: 4 Services SMB Layer 2 GbE switch LCM display (1) 1.3" LCM color touchscreen Button Factory reset Ambient operating temperature -5 to 40° C (23 to 104° F) Ambient operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC Switching Features Layer 2 features IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs LEDs System Status SFP+ Link/activity Application Requirements UniFi Network Version 5.14.12 and later
