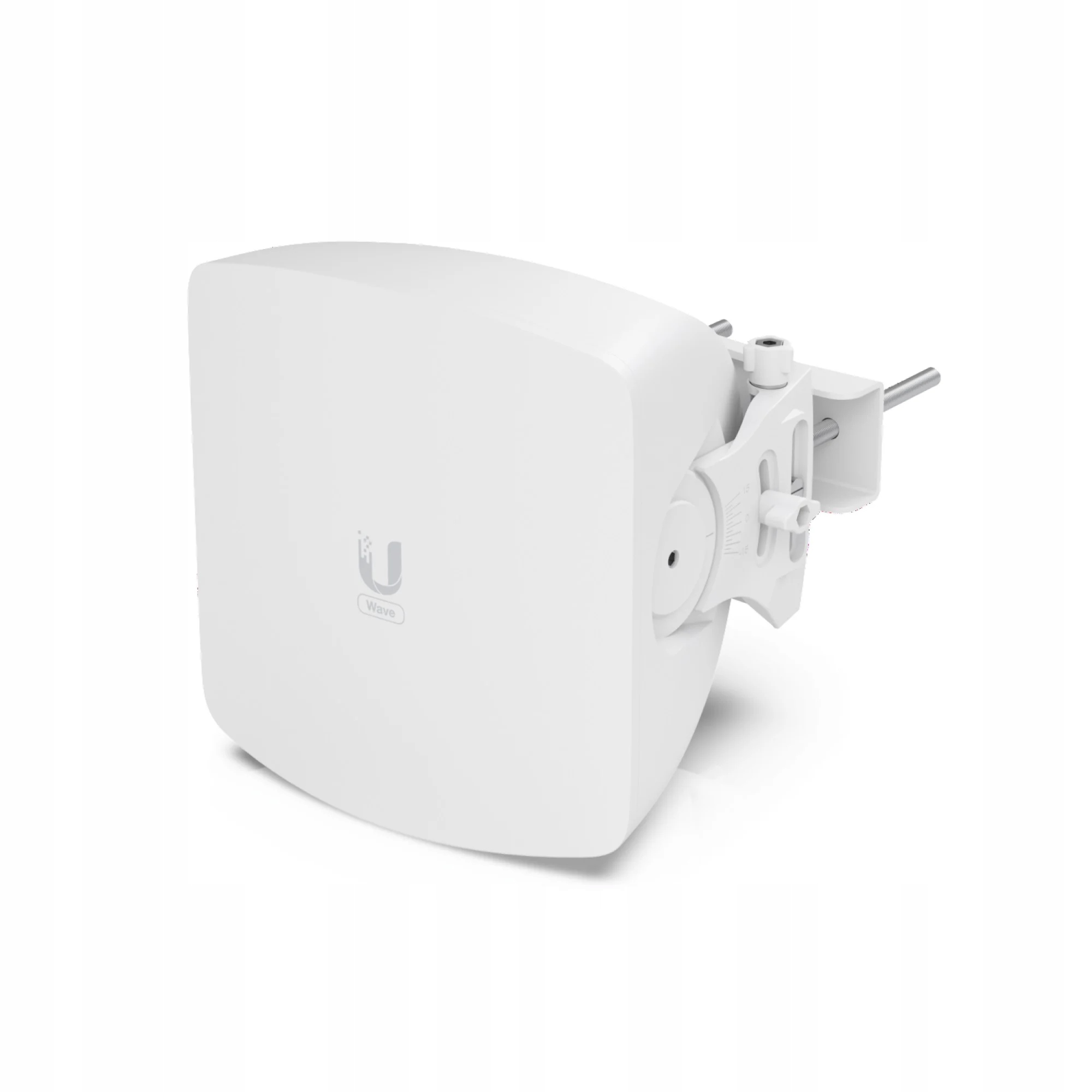

Prístupový bod Ubiquiti Wave-AP 802.11ax (Wi-Fi 6)

Popis produktu

60 GHz PtMP access point powered by Wave Technology. Max. total throughput: 5.4 Gbps (2.7 Gbps duplex) 30° sector coverage 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps) (1) 2.5 GbE and (1) 10G SFP+ WAN ports 31* client capacity: — Wave Pro (8 km link range) — Wave Long-Range (8 km link range) — Wave Nano (5 km link range) — Wave Pico (1.3 km link range) Integrated GPS & Bluetooth Mechanical Dimensions 212 x 205 x 187 mm (8.3 x 8.1 x 7.4") Weight 2.3 kg (5.1 lb) Enclosure material Aluminum alloy, UV stabilized polycarbonate Pole mount diameter 25 to 76 mm (1 to 3") on pipe outer diameter Wind loading 98 N at 200 km/h (22 lbf at 125 mph) Weatherproofing IPX6 Hardware Processor Quad-core ARM Cortex-A53 at 1.4 GHz Memory DDR3L 512 MB Networking interface (1) 2.5GbE RJ45 port (100/1000/2500)* (1) 10G SFP+ port (1/10) * Active only when SFP+ port is down. Max. power consumption 24W Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only Power supply 48V DC, 0.65A 2.5GbE PoE adapter (Included) Supported voltage range 44–54V DC 22–27V DC GPS Yes Button Factory reset LEDs Power, Ethernet, GPS Ambient operating temperature -40 to 60° C (-40 to 140° F) Ambient operating humidity 5 to 95% noncondensing Certifications FCC, IC, CE Software Operating mode PtMP access point Ubiquiti specific features Wave technology Services UISP, ping watchdog, NTP client, SNMP Tools Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey* *FW version 3.3.0 and later. Network Bridge mode Application requirements UISP: Version 1.5.7 and later System Total throughput 5.4 Gbps (2.7 Gbps duplex) Supported clients count 31* *FW version 3.4.0 and later. Max. range Connecting to a Wave Pro: up to 8 km Connecting to a Wave Long-Range: up to 8 km Connecting to a Wave Nano: up to 5 km Connecting to a Wave Pico: up to 1.3 km Encryption WPA2-PSK (AES) RF Operating frequency* 57–71 GHz *Depends on regulatory region. Channel bandwidth 2160, 1080, 540* MHz *FW version 3.3.0 and later. Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. Modulation 16QAM, QPSK Antenna gain 24 dBi Polarization Vertically linear Beamwidth Azimuth: 3 dB 30° Elevation: 3 dB 3° Electrical downtilt 0° Back-Up RF WiFi standard 802.11ax (WiFi 6) Operating frequency* US/CA Worldwide U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region. Channel bandwidth 20, 40, 80 MHz Modulation BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) Antenna gain 12 dBi Cross-pol isolation 10 dB Polarization Dual-linear Beamwidth Azimuth: 3 dB 35° Elevation: 3 dB 60° Electric downtilt 0° LEDs Power Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress Ethernet Flashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detected GPS Blue: receiving at least (4) GPS satellite signal
