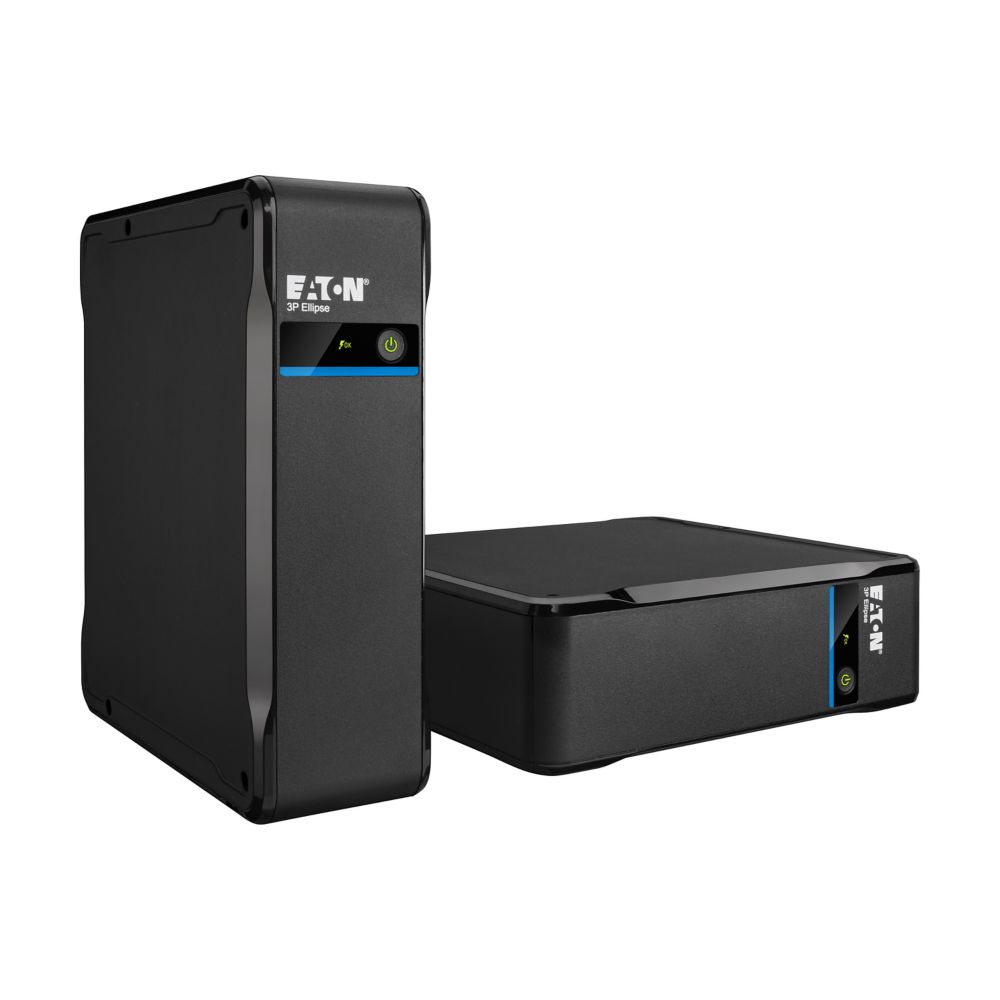

Eaton 3P Ellipse Ups Fr, 550 Va, 330 W, Input: C14, Outputs: (3) French, …

Popis produktu

Produktové špecifikácie Special features Convenient extra-flat design for easy installation in any office environment High performance surge-protection device compliant with IEC 61643-11 standard 4 outlets to connect your PC + peripherals Easy to replace battery helps to extend UPS service life Topology Offline Form factor Tower Construction type Free standing model Color Black VA rating 550 VA Wattage 330W Rack mounting kit No Package contents Input cable Quick start Safety instructions Surge protection Yes Auto shutdown function No Primary frequency - max 70 Hz Primary frequency - min 46 Hz Input connection C14 Input cord length 1.5 m Input nominal voltage 230V default (220/230/240V) Nominal frequency 50-60 Hz Input frequency range 46-70 Hz Receptacle (3) French, (1) French surge only Number of output connections French standard (Type E) 4 Voltage 230V Output nominal voltage 230V default (220/230/240V) Feed type 1 Voltage type AC Runtime graph Battery management Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable Battery rating 12 V / 4.5 Ah Battery type Sealed, lead-acid Extended battery capability No Runtime at half load 7.5 min Expansion slots No Ethernet interface No Includes network card No User interface LED display Type of interface None Potential free switch contact No Altitude 3000 m Noise level <25 dB at 1 meter Relative humidity 0 - 95 % (non-condensing) Temperature range 0° to 40°C (32° to 104°F) Operating temperature - max 40 °C Operating temperature - min 0 °C Output apparent power 550 VA Input voltage - max 284 V Input voltage - min 161 V Output voltage - max 284 V Output voltage - min 161 V Secondary frequency - max 60 Hz Secondary frequency - min 50 Hz Battery quantity 1 Efficiency at max. load 97 Efficiency (eco-mode) 97 Input voltage range 184-264 V (adjustable to 161-284 V) Output frequency 50/60 Hz Output power factor 0.6 Output voltage range 184-264 V (adjustable to 161-284 V) Phase (input) 1 Phase (output) 1 Runtime at full load 1,5 Power consumption 10.2 W USB interface No
