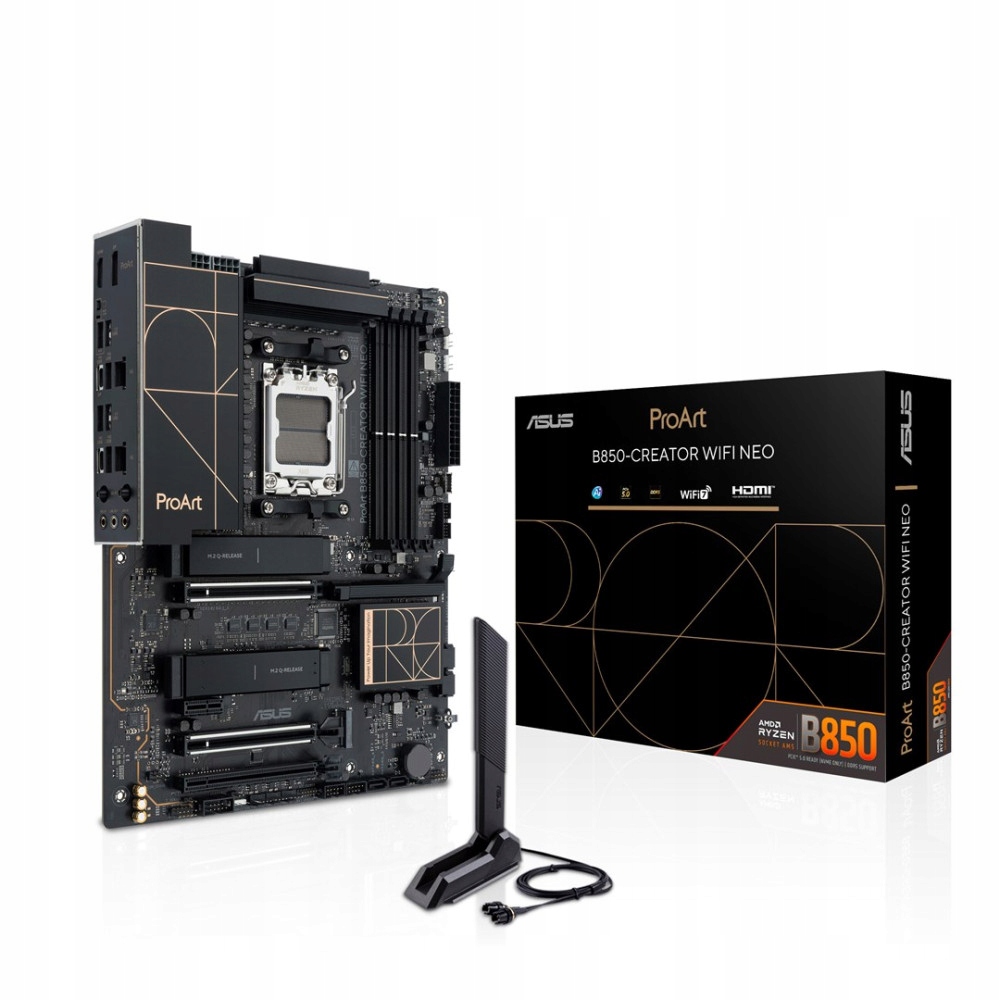

Asus Proart B850-CREATOR Wifi Neo soc AM5 DDR5 B650 Atx Usb-c Hdmi Dp…

Popis produktu

Základná doska ProArt B850-Creator WiFi Neo je navrhnutá tak, aby posilnila tvorcov na všetkých úrovniach a poskytovala optimalizovaný výkon pre najnovšie procesory AMD Ryzen™ radu 9000, 8000 a 7000, ako aj pre procesory AMD radu EPYC™ radu 4005. Vďaka robustnému dizajnu napájacích stupňov 14+2+1, podpore DDR5, rozšíreniu PCIe 5.0 a ultrarýchlej konektivite – vrátane duálneho 5G Ethernetu a WiFi 7 – poskytuje spoľahlivý základ pre náročné kreatívne pracovné úlohy. So svojou rafinovanou estetikou, ktorá odráža profesionálnu a elegantnú dizajnovú filozofiu, sa základná doska vyznačuje viacvrstvovými čiernymi tónmi zvýraznenými kovovými zlatými detailmi. Táto platforma bezproblémovo kombinuje výkon, konektivitu a dizajn a poskytuje výkon potrebný pre dnešné pokročilé aplikácie AI PC. Model ProArt B850-CREATOR WIFI NEO CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors* * Refer to for CPU support list. Chipset AMD B850 Chipset Memory 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8400+(OC)/8200+(OC) MT/s with Ryzen™ 9000 Series Processors, 9000+(OC)/8600+(OC) MT/s with Ryzen™ 8000 Series Processors, 8000+(OC)/8000+(OC) MT/s Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Supports up to 5600MT/s with AMD EPYC™ 4005 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. * Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components. * XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Adjustments will be made based on the specifications of mass-produced memory products available on the market. Graphics 1 x DisplayPort** 1 x HDMI™ port*** 1 x USB 10Gbps port (USB Type-C) supports DisplayPort video output** * Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)*** AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)**** 1 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site ( ** Specifications vary by CPU types. *** When you use both PCIEX16(G5)_1 and PCIE16(G5)_2, they will run at x8 each. **** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs. - To ensure compatibility of the device installed, please refer to for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 & 9000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports * The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs. RAID Support AMD RAIDXpert2 Technology Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10 Ethernet 2 x Realtek 5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7 (Realtek RTL8922AE) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth Bluetooth (suppports LE Audio)*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer"s website for the latest specifications. USB Rear USB
